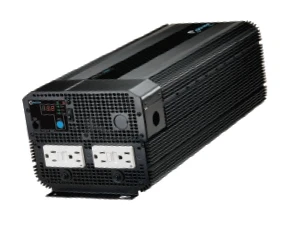

Xantrex Xpower 5000 12v 5000W Inverter With Gfci

Mobile Power for Trucks, RVs and Boats

XPower Inverters connect easily to 12 volt batteries to provide AC power for a variety of medium to heavy duty applications. Designed for easy installation and operation, the XPower inverters provide a reliable source of power onboard trucks, RVs and boats to run home appliances, consumer electronics, entertainiment systems, power tools, office equipment and much more. They are also suitable for small contractors who need to operate handheld power tools from their van or pick-up truck. The powerful 5000-watt model has four GFCI oulets for multiple loads and an easy-to-read digital display for instant system information. All models meet the stringent UL458 regulatory requirements.

Product Features

• Portable power for AC products: 1000, 1500, 3000 and 5000 watt models available
• Two GFCI AC receptacles for connecting multiple loads
• 5000-watt model: Four GFCI AC receptacles, each equipped with a 20-amp breaker
• High surge capacity for products that require more power to start
• High efficiency – converts virtually all the battery?s available power to AC
• Mounting brackets for convenient installation
• Heavy duty stud connectors
• Remote on/off switch included

Protection Features

• Overload and over temperature shutdown
• Over voltage protection (15.0 VDC)
• Low voltage alarm (11.0 VDC)
• Low voltage cut-out (10.5 VDC)

Product Applications

• Household Appliances: compact microwave ovens, bread makers, food processors, small bar refrigerators, small vacuum cleaners, fluorescent and incandescent lights, sewing machines and fans
• Handheld Power Tools: drills, jigsaws, sanders and buffers
• Entertainment Electronics: televisions, VCRs, video games, stereos, musical instruments and satellite equipment
• Office Equipment: computers with 17? monitors, facsimile machines

Electrical Specifications	Inverter 1000	Inverter 1500	Inverter 3000	Inverter 5000
Surge capacity (peak)	2000 watts	3000 watts	5000 watts	10000 watts
Max. continuous power	1000 watts	1500 watts	3000 watts	5000 watts
AC output voltage	115VAC +/- 5%	115VAC +/- 5%	115VAC +/- 5%	115VAC +/- 5%
AC output Frequency	60Hz +/- 1Hz	60Hz +/- 1Hz	60Hz +/- 1Hz	60Hz +/- 1Hz
AC output waveform	Modified sine wave	Modified sine wave	Modified sine wave	Modified sine wave
Optimum  efficiency	90%	90%	90%	90%
No load current drive
Input voltage range	10.5 – 15.5 VDC	10.5 – 15.5 VDC	10.5 – 15.5 VDC	10.5 – 15.5 VDC

General Specifications
Operating temperature range	32 degrees F − 104 degrees F / 0 degrees C − 40 degrees C
AC receptacles	2	2	2	4
Dimensions(HxWxL)	2.8 x 5.9 x 12.3	3 x 5.9 x 15	4.3 x 9.5 x 18.5	6.25 x 8 x 19.5
Weight	4.4Lbs	5.9Lbs	12.9lbs	24.1 Lbs
Warranty	1 year	1 year	1 year	1 year
Part Number	813-1000-UL	813-1500-UL	813-3000-UL	813-5000
