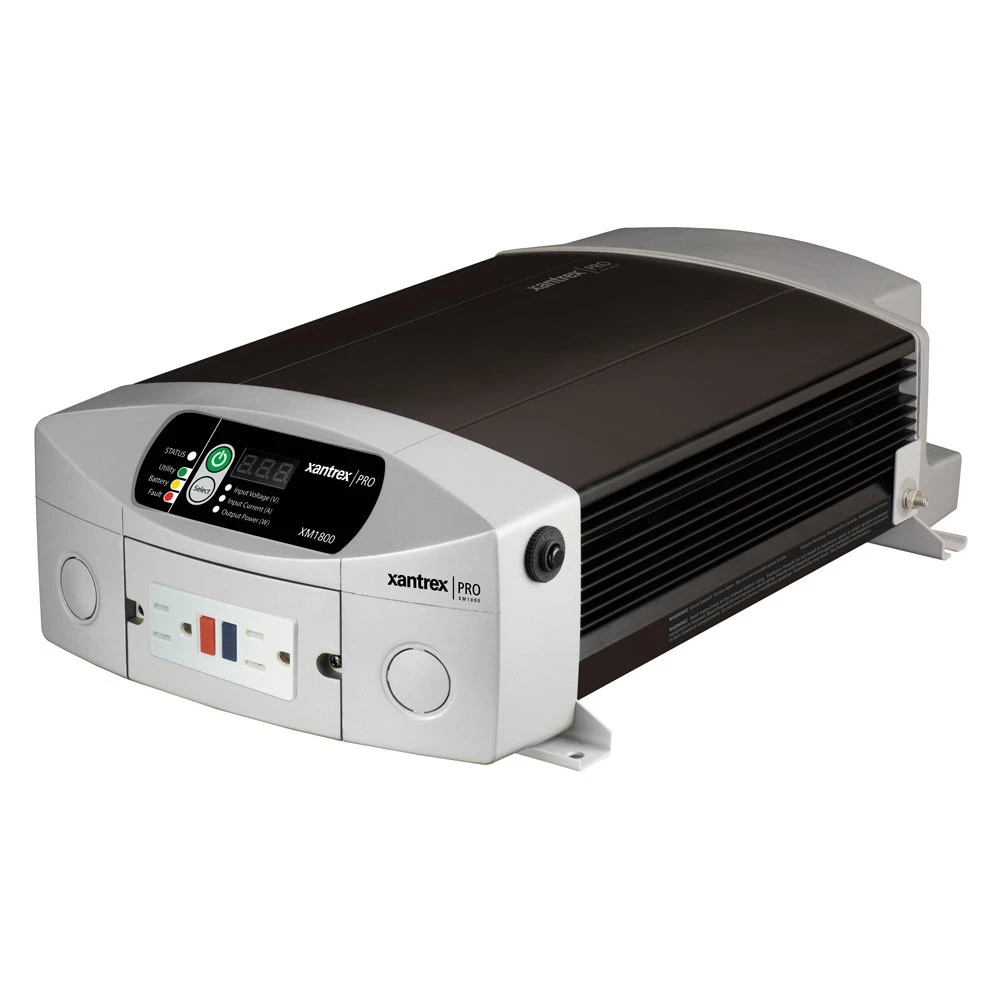

Xantrex XM1800 Inverter 1800 Watt Modified Sinewave

The Xantrex PRO Series Inverters are the perfect complement to generators when shore power is unavailable, to quietly and efficiently provide household power when needed. The PRO Series design is both user friendly and versatile. These inverters feature a detachable, digital remote control to display precise inverter, AC source and battery status information from one convenient location. A built-in transfer switch automatically detects when generator or shore power status changes to ensure power is always available.

Both 1000 and 1800W models are designed for demanding RV and marine conditions. They meet FCC Class B regulations to eliminate interference potential with other electronics, while UL 458certification means they meet strict RV and marine safety standards. Versatile enough to be mounted either horizontally or vertically, these inverters can be easily installed to fit into any compartment. Conformal coated boards also minimize the chance of problems from moist operating conditions.

Performance Features

• 1000/1800W inverter easily powers TVs, small appliances, and other electronics
• Built-in 15A circuit breaker to protect GFCI connected loads
• Up to 25A pass through for hardwired loads
• Digital remote control displays power output, AC source and battery voltage
• Detachable remote control can be mounted wherever convenient
• Conformal coated electronics provide moisture resistance
• Designed to be hard-wired using a terminal strip or by connecting AC through a GFCI receptacle (included)

Protection Features

• Battery over-voltage and under-voltage protection
• Over temperature shutdown
• Automatic overload protection
• Short-circuit protection
• Ground fault protection

Specifications Electrical Specifications Models   XM1000   XM1800 Maximum continuous power 1000 W 1800 W Surge rating 2000 W 3600 W Output current (continuous) 8.3 A 15 A Output voltage (at no load) 115 V +/- 10 V 115 V +/- 10 V Output frequency 60 Hz +/- 1 Hz 60 Hz +/- 1Hz Output waveform Modified sine wave Modified sine wave Peak efficiency 88% 88% No load power draw Power draw in standby mode Input operating voltage range 11.0-15.5 VDC 11.0-15.5 VDC Transfer relay rating 25 A 25 A Transfer time   General Specifications Operating temperature range 0 degrees C – 40 degrees C 0 degrees C – 40 degrees C Storage temperature range -20 degrees C – 60 degrees C -20 degrees C – 60 degrees C AC receptacles 2 2 Recommended DC fuse 150 A 250 A Dimensions (H x W x D) 4 x 8.3 x 13 (103 x 211 x 329mm) 4 x 8.3 x 15.5 (103 x 211 x 393mm) Weight (lbs) 7.5 9.5 Part numbers 806-1010 806-1810 Warranty 1 year 1 year   Regulatory Approval FCC Class ?B?, UL 458 Note: Specifications subject to change without notice.
