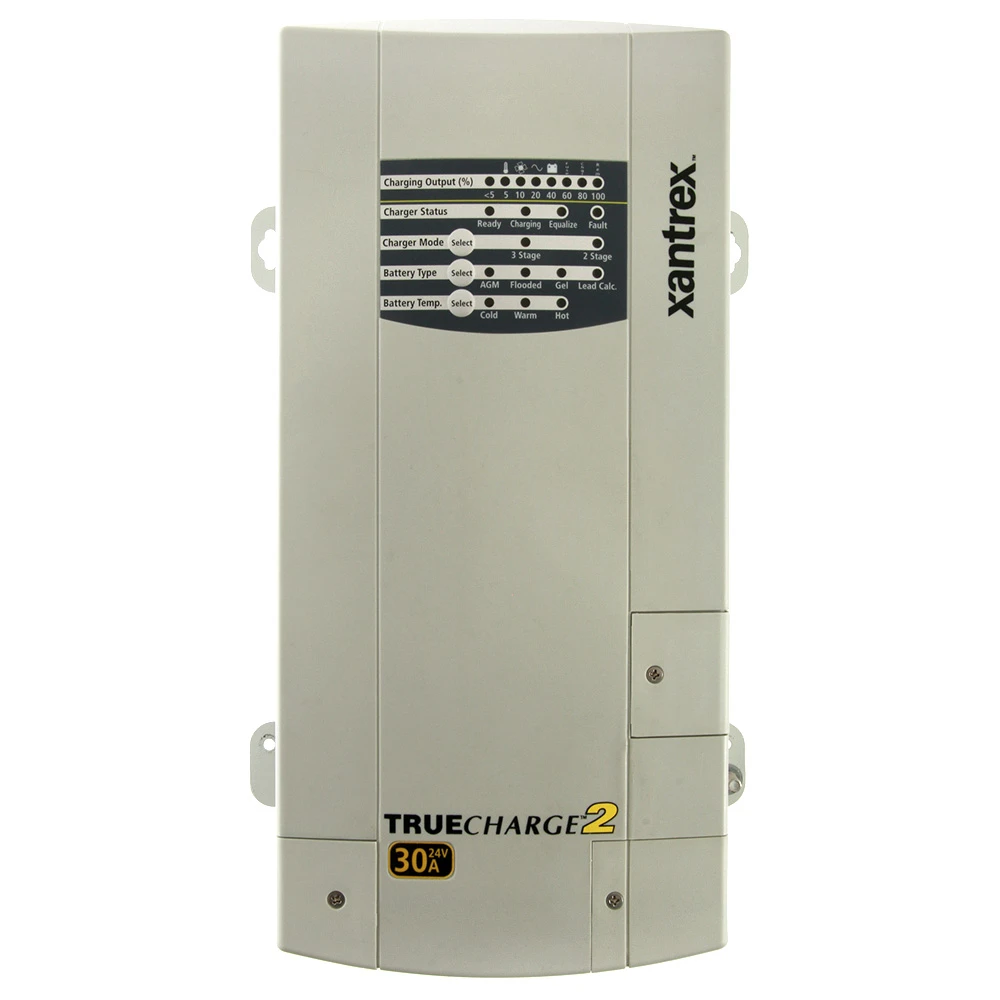

Xantrex True Charge 2 Battery Charger 30amp 24v

Unmatched reliability and performance

The Xantrex True Charge 2 Battery Charger was
carefully designed to provide high quality performance. The unique
small footprint and ultra-compact design of the Xantrex True Charge
2 gives it an edge among other battery chargers. It features low
electrical interference and an efficient power factor corrected
multistage charging. Also, its unique drip-proof design allows it
to be mounted virtually anywhere! The Xantrex True Charge 2
Battery Charger is designed primarily for marine and
commercial applications worldwide and has passed and met the global
safety and regulatory standards.

Three-Stage Charging Multistage charging ensures batteries receive
optimum charging, but with minimal wear and tear, regulating the
voltage and current delivered to the batteries in three automatic
stages:

• Bulk: Replaces 70-80% of the battery’s state-of-charge at the
  fastest possible rate
• Absorption: Replenishes the remaining 20-30% of charge,
  bringing the battery to a full charge at a slow, safe rate
• Float: Voltage is reduced and held constant in order to prevent
  damage and maintain batteries at a full charge – the “Float”
  function acts like a trickle charge so it keeps the battery at full
  charge

Xantrex True Charge 2 Battery Charger
Features:

• 24V model in 30A
• Microprocessor-controlled, multistage charging
  algorithms

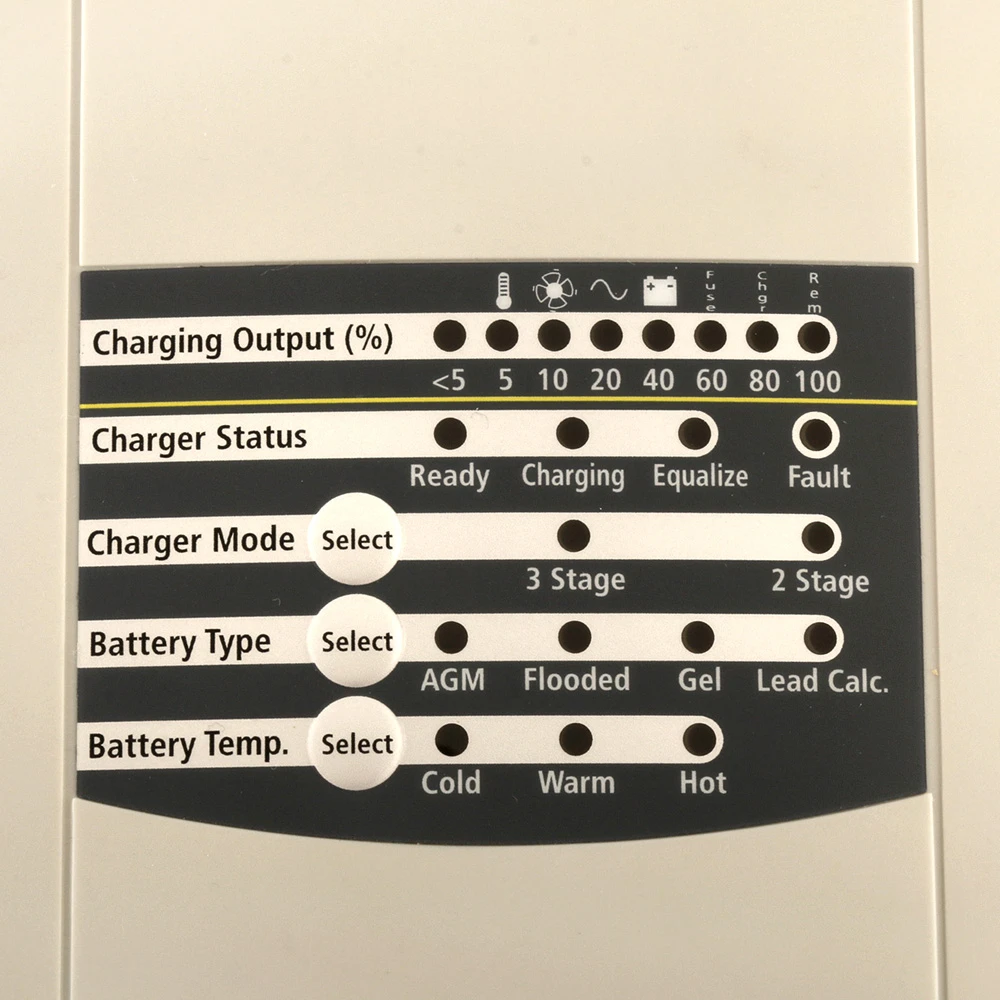

• Settings for two and three-stage charging
• Settings for flooded, gel, AGM or lead-calcium
  batteries
• Auto-ranging universal input voltage (90-265 Vac, 47-63 Hz) is
  also compatible with a generator or other low-quality power
  sources
• Temperature-compensated charging
• Power factor corrected for efficient charging
• Battery-equalisation feature
• Ability to charge ‘dead’ batteries
• Battery temperature sensor available (Part
  #808-0232-01)
• Optional remote panel (#808-8040-01) required for parallel
  stacking
• Reverse battery polarity protection
• Drip-proof design
• Over and under-temperature protection
• DC over-voltage protection
• Battery overcharging protection

Xantrex True Charge 2 Battery Charger

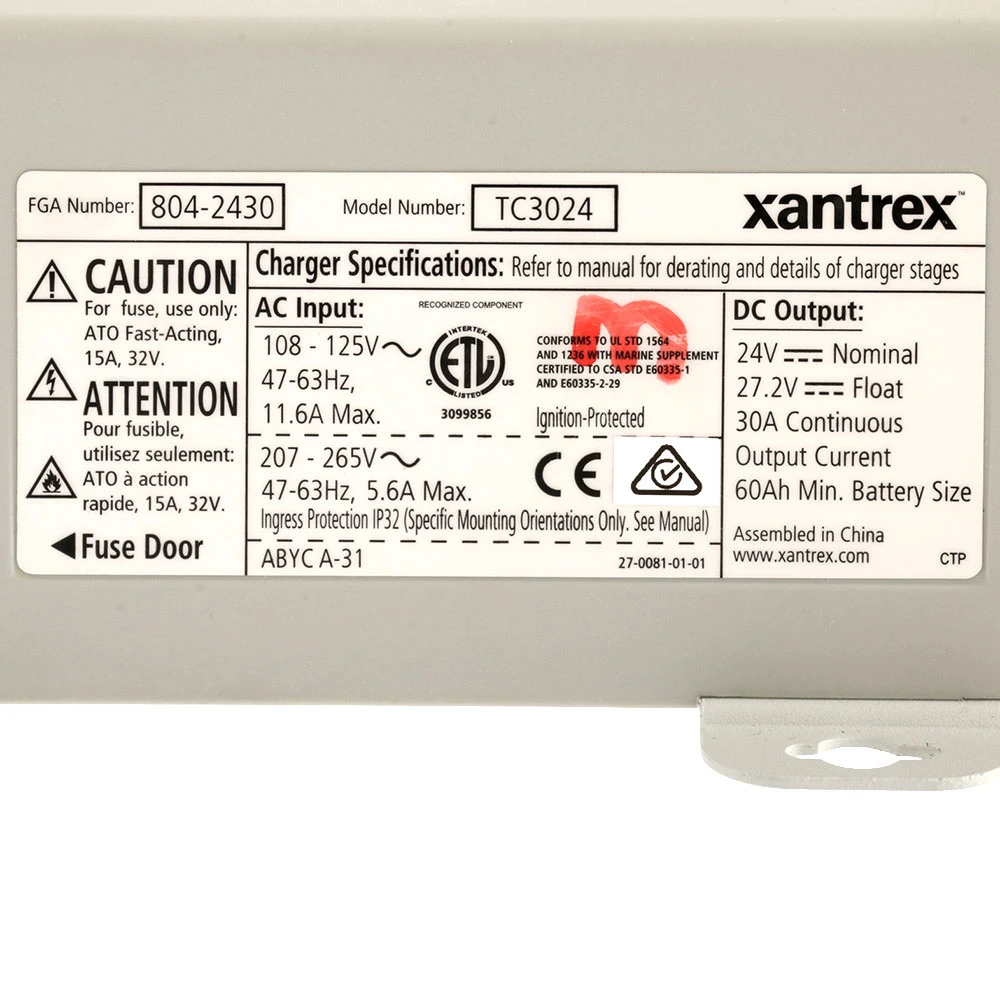

Specifications:

• Operating temperature: 0 to 60°C
• Storage temperature: -40 to 80°C

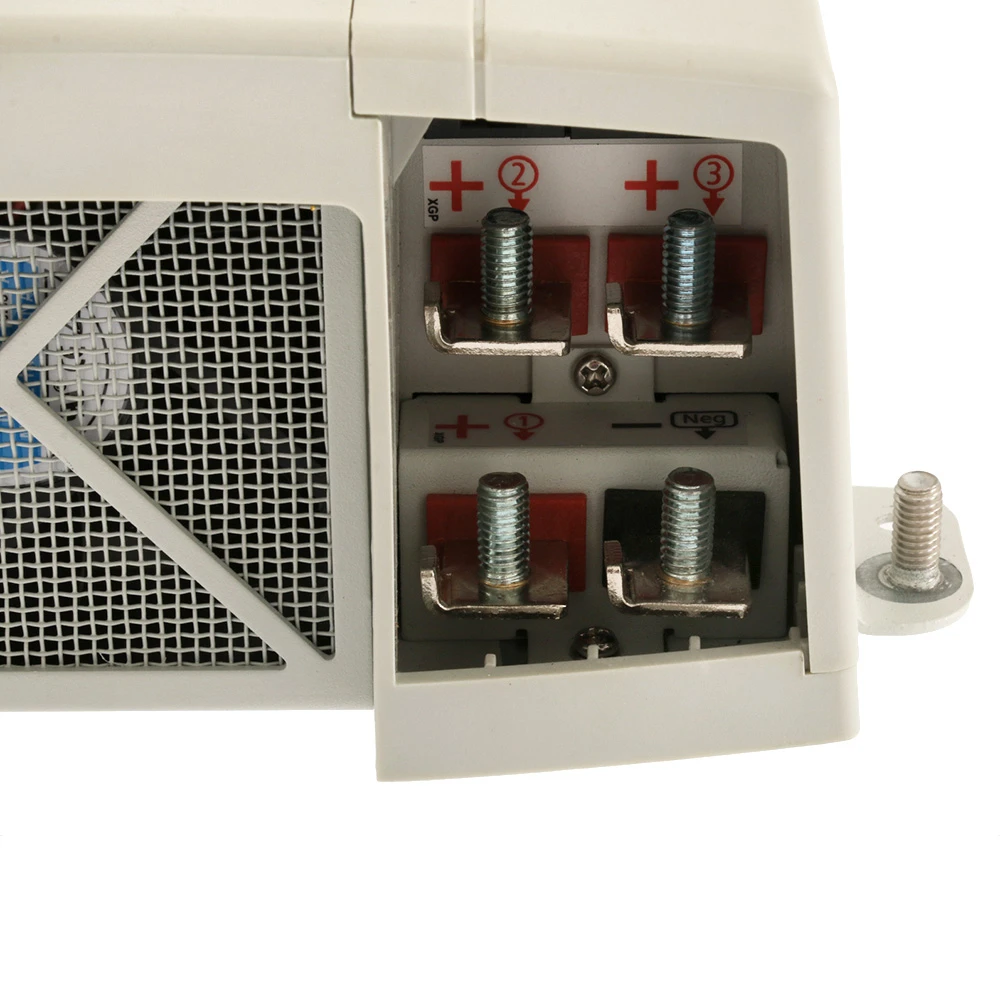

• Battery connection: Three positive terminals, One negative
  terminal
• Dimensions (H x W x L): 2.8 x 6.7 x 9.8” (70 x 170 x
  250mm)
• Weight: 4.8 lb (2.2 kg)
• Output current (nominal): 20 A
• Output voltage (Charge): 14.2 – 15.5 Vdc
• Output voltage (Float): 13.4 – 13.8 Vdc
• Output voltage (Equalize): 16 Vdc
• DC output connections: Three
• AC input voltage*: 90-265 Vac 47-63 Hz, 120 Vac, 230 Vac, 240
  Vac nominal
• Temperature compensation: Three settings
• Charger efficiency: > 80%
• Battery type: Gel, Flooded, AGM, Pb-Ca
• Minimum recommended battery bank size: 40 Ah / 80 Ah / 120
  Ah
