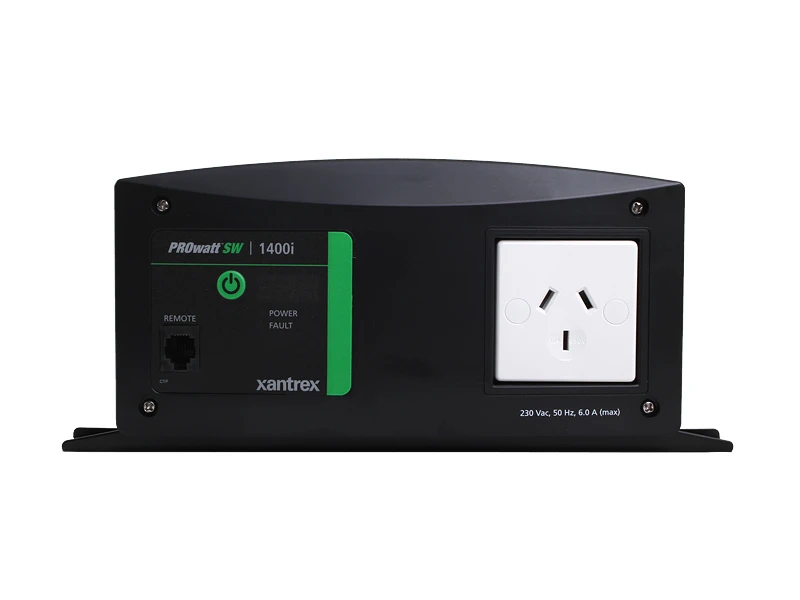

Xantrex PROwatt 1400i Pure Sine Wave Inverter

An advanced alternative to modified sine wave inverters

The Xantrex PROwatt SW 1400i Sine Wave Inverter is
an advanced true sine wave inverter designed to power demanding
household electrical loads and commercial applications. The
compact, easy-to-use and easy-to-install design of the PROwatt SW
Series makes it also ideal for use in marine applications. With
True Sine-Wave output, the PROwatt SW Series can provide power for
all types of electrical loads including, variable speed power
tools, advanced electrical appliances, microwaves and much more.
With high surge capability, the PROwatt SW Series provides the
necessary current to start-up demanding electrical loads.

Unique safety feature
The PROwatt SW Series offers many safety features not found in
similar inverters. When equipped with a remote control, the PROwatt
SW Series has the ability to provide automatic ignition lockout
shutting down the inverter’s output when the vehicle’s ignition is
not engaged.

Ease of use
The Xantrex PROWatt SW 1400i features easy to
reach connections, compact design and small footprint which allows
it to be quickly and easily installed into a variety of locations.
It also provides a user friendly display to monitor operation and
assist with trouble shooting.

Xantrex PROWatt SW True Sine Wave Inverter
Features:

• Meets New Zealand Electrical Standards CE Approved
• Marine rated
• DC Input: 12vdc
• Built-in digital display for DC volts and output power
• Heavy duty terminals for trouble-free battery
  connection
• Available ON/OFF remote switch (with ignition lockout)
• Continuous AC Power: 1400 W
• Low voltage shutdown: (10.5 Vdc)
• Low voltage alarm: (11.0 Vdc)
• Over voltage protection: (15.5 Vdc)
• Overload shutdown
• Over temperature shutdown
• AC Output Frequency: 50 +- .5Hz
• AC Output Voltage Range: 230vac +-10%
• Output Waveform True Sine Wave (Pure Sine Wave)
• Output Efficiency: 90%
• No load current draw: < 1000ma
• Dimensions: (H x W x L) 11.5 x 24.0 x 36.9 cm
• Weight: 4.64kg
• High Surge Capability: Provides high intitial startup power to
  start demanding loads
• Protection Features: The PROwatt SW includes battery
  over-voltage and under-voltage protection and under-voltage
  protection, over temperature shut down, automatic overload and
  short circuit protection.
• Easy-To-Install: Featureing easy to reach connections, the
  PROwatt SW 1400i can be quickly and easily installed into a variety
  of locations due to its compact design and small footprint
• Warranty: Full 2 Year NZ Backed Warranty

Click on this
Data Sheet to get the detailed specifications of this unit.

Check out the Xantrex PROwatt
Owners Guide.
