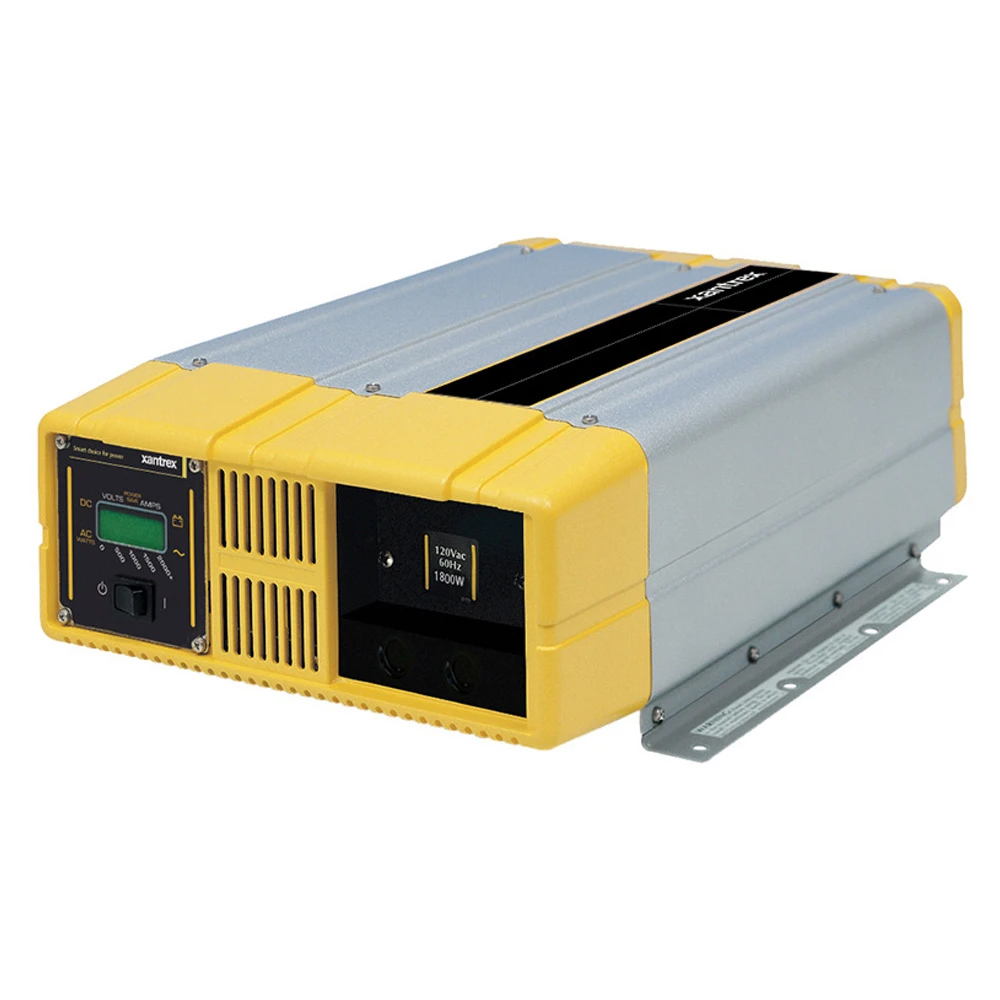

Xantrex PROSine PS1800 Pure Sinewave Inverter 1800W 12V

True sine wave AC output voltage

The Xantrex PROSine PS1800 Pure Sinewave
Inverter
delivers true sine wave output that’s identical to AC power
supplied by your utility. The clean output makes it ideal for
handling sensitive loads, while also improving AC equipment
performance.

Designed for recreational and industrial applications, their
120-volt, 60 Hz AC power output is capable of handling both
heavy
duty and smaller, multiple AC loads. Offering superior quality
true
sine wave output, the Prosine 1800 stand-alone power inverters
is
ideally suited for electrical systems that already have a
quality
multistage battery charger. Expect the best performances from
televisions, audio systems, speed tools, and any other
electronics
where you want nothing but the most optimal performance.

Light and Compact

PROsine power inverters are lighter and more compact than other
power inverters with similar power ratings because they use
high-frequency switching technology in the power conversion
process.

Inverter Function

When connected properly and the power switch is turned to the
(I)
position, the inverter draws power from a battery and delivers
a
true sine wave AC output voltage. If the battery voltage is
within
the operating range of the unit, the inverter will continue to
deliver AC power to the loads connected. High and low battery
shutdowns will engage if the battery voltage falls out of the
specified range of operation (10–16 VDC on 12 V models, 20–32
VDC
on 24 V models).

Xantrex PROSine PS1800 Pure Sinewave Inverter
Features:

• Light weight for easy installation
• Totally silent: for quiet operation
• High surge capability: for “hard-to-start” AC loads
• 11800 watt inverters (2900 watt surge capability)
• True sine wave AC output (crystal controlled)
• Removable LCD display can be mounted remotely for control
  and
  monitoring
• Unique DC terminals offer 180-degree connections for easy
  installation in tight places
• Powersave mode draws only 1.5 watts under no load
• Two year warranty
• Over temperature shutdown and automatic overload
  protection
• Over voltage and under voltage protection
• Short circuit and AC backfeed protection

Xantrex PROSine PS1800 Pure Sinewave Inverter
Specifications:

• Continuous output power: 1800W
• Surge rating: 2900W
• Peak output current: 45A
• Peak efficiency: 90%
• No load draw, search mode: <1.5W
• No load draw, idle mode: <22W
• Output frequency: 60 Hz ± 0.05%
• Output waveform (resistive load): Sine Wave (<3% THD, 1%
  TYP)
• Input voltage range: 10-16 VDC (12v model)
• Output voltage (at no load): 120 VAC RMS ±3%
• Output voltage (over full load & battery voltage range):
  120
  VAC +4%, -10%
• Low battery cut-out: 10 VDC
• High battery cut-out: 16 VDC
• Dimensions: 4.5 x 11.0 x 15.4 inches
• Weight: 7.5kg
