Xantrex Freedom XC PRO 3000 3000W Inverter 150A Charger 12vDC In 120vAC Out

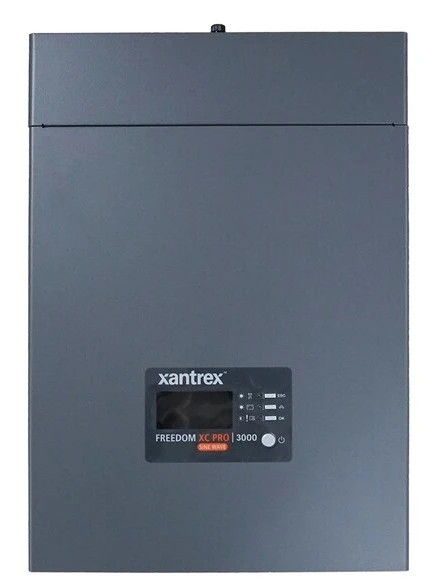

Xantrex Freedom XC Pro 3000 Watt Inverter, 150A Charger with 50A Transfer Switch

Model: 818-3010

Features:

• Extended Surge Rating: Surges to 2X continuous power for 5 seconds for motor loads
• True Sine Wave AC Power: For operation of sensitive and motor loads
• Ignition Control: Feature to turn inverter on/off via a 12 VDC signal and to minimize battery drain by switching the inverter off when the ignition key is turned off
• Wide 10-18 VDC Input Range: Ensures inverter operation on high voltage alternators found on many new vehicle chassis
• Programmable AC Under-Voltage (85-110VAC) Shutdown: Feature ideal to operate under weak shore power or generator input
• Built in 50A AC Transfer Relay (3KW model): Senses when outside AC Power is present and transfers the load from the inverter to the source of incoming power
• Power Factor Corrected Multi-Stage Charging: Utilizes less shorepower when charging batteries. This frees up more usable AC power for running electrical devices and appliances and reduces the likelihood of tripping shorepower breakers
• Programmable: Configurable 3 stage temperature compensated battery charge algorithm for optimal charging of almost any battery type up to 18V
• Battery Equalization: Maximizes flooded battery life
• Dead Battery Charging Down to 0 Vdc
• Power Share: Prioritizes AC loads by reducing the charge current and maintaining the total input current to less than the breaker setting
• Easily configurable settings to charge any lithium ion battery

The Freedom XC PRO inverter/charger, supporting RV-C and J1939 protocols, is the most versatile and flexible AC power solution in the market today. It also features a 150 amp battery charger and offers all of the configurable features of the Freedom XC series inverter/charger in a compact, light weight package. It cranks out full output in invert or charge mode from -4 degrees F (-20 degrees C) – 104 degrees F (40 degrees C) for operation in all climate temperatures. The extended surge rating enables compressor loads such as an A/C or a fridge to start reliably.

Specifications

Inverter Specifications
AC Output Operating Voltage Options	120, 110, 108 Vac
Continuous Output Power	Continuous Power 3000 W @40 C True sine wave (TSW)
Continuous AC Output Current	25A
Surge Power	6000 W (? 5 sec)
Frequency (Configurable)	60 (or 50) Hz
Peak Efficiency	91%
Full Load Efficiency	greater than or equal to 84%
Operating Input AC Pass-Through Voltage Range	85-140 Vac
Safe Non-Operating Input AC Voltage Range	Up to 240 Vac RMS
Power Factor at Full Charge Rate	> 98%
Battery Charger Specifications
Min Battery Voltage for Charging	0.0 Vdc
Max DC Output Voltage	18.0 Vdc (custom battery type)
Selectable DC Output Current	User Selectable: 5 – 150 A
Full Load Max AC Input Current	25 Arms
Max DC Charge Current	150A
General Specifications
Operating Temperature Range	4 to 140 F (-20 to 60 C), with output derated above 104 F (40 degrees C)
Storage Temperature Range	-40 to 158 F (-40 to 70 C)
Operating Humidity Range	5 to 95% RH, non-condensing
Transfer Relay AC Current Rating	50 A surge, 40 A continous
DC Input Operating voltage range	10.1 – 18.0 VDC
DC Input Max Non-Operating Voltage	25 Vdc
DC Input/Output Nominal Voltage (inverting/ Charging)	12.0 Vdc
DC Nominal Current at Full Load	304Adc
L x W x H (without flanges)	5.4(390 mm) x 10.8(275 mm) x 4.9(125 mm)
L x W x H (with flanges)	16.0(406 mm) x 12.0(305 mm) x 4.9(125 mm)

What’s in the Box:

• Freedom XC Pro 3000
• Owners Manual
• Pre-installed DC ground enclosure lug
• Plastic bushings for large DC cables
• 2 AC knockout hole plugs
