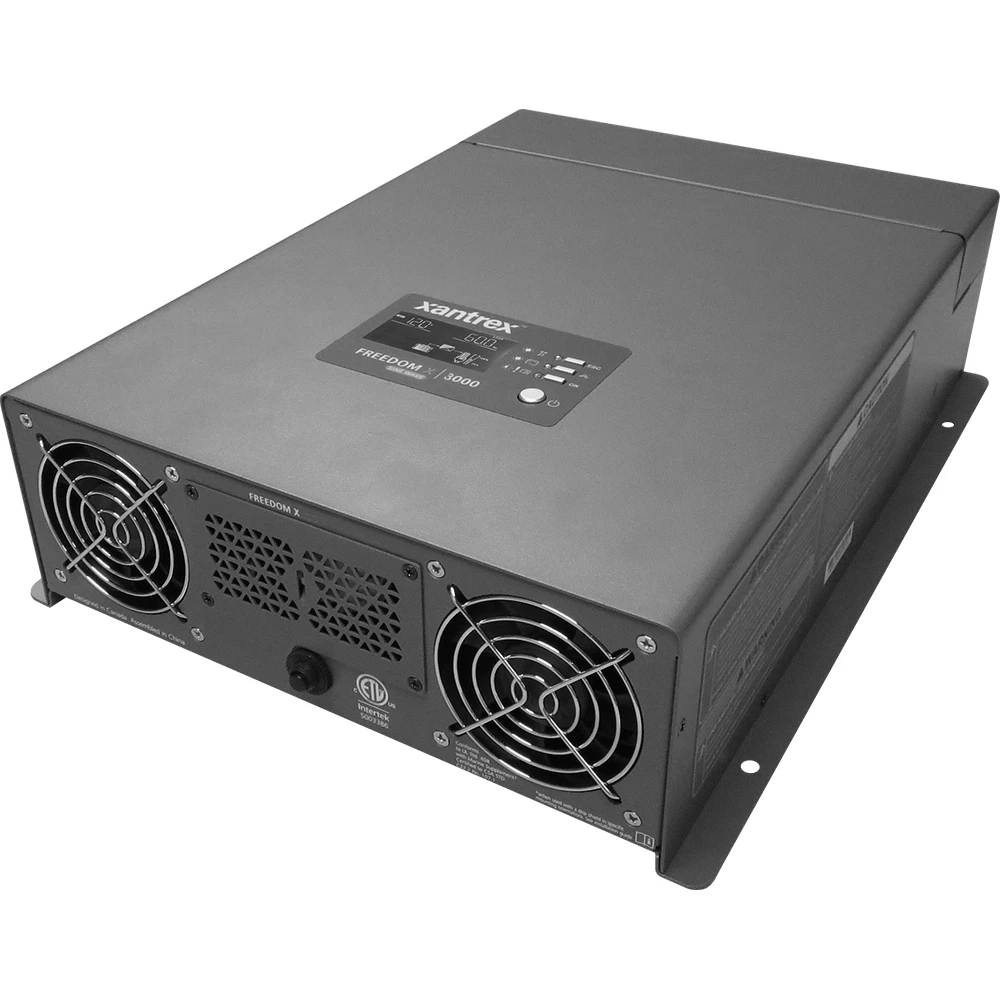

Xantrex Freedom X3000 3000W True Sine Wave Inverter

Xantrex Freedom X 3000 Watt True Sinewave Inverter

Model: 817-3000

Features:

• Extended Surge Rating: Surges to 2X continuous power for 2 seconds for motor loads
• True Sine Wave AC Power: For operation of sensitive and motor loads
• Ignition Control: Feature to turn inverter on/off via a 12 VDC signal and to minimize battery drain by switching the inverter off when the ignition key is turned off
• Wide 10-18 VDC Input Range: Ensures inverter operation on high voltage alternators found on many new vehicle chassis
• Built-in 30A AC Transfer Relay: Senses when outside AC Power is present and transfers the load from the inverter to the source of incoming power (shore or generator). The unit also automatically switches from invert mode to charge mode
• Quick Installation: Huge wiring bay for easy access and quick connect AC in/out terminals for fast & easy wiring

The Freedom X inverter offers premium performance in a lightweight compact package. It cranks out full output from -4 degrees F – 104 degrees F for operation in all climate temperatures. The extended surge rating of the Freedom X makes it ideal to start difficult loads including fridge and microwave. The quick connect terminals at AC IN/OUT make installation a breeze.

Specifications

Electrical Specifications
Operating voltage	120, 110, 108 VAC
Continuous power	Continuous Power 3000 W @40 C True sine wave
Continuous current	25 Amps
Surge power	6000 watts
Frequency	60 Hz
Peak efficiency	91%
Full load efficiency	Greather than or equal to 85%
Operating voltage range	85-140 VAC
Safe Non-Operating voltage range	Up to 240VAC
General Specifications
Operating temperature range	-4 to 140 F (-20 to 60 C), with output derated above 104 F (40 degrees C)
Storage Temperature Range	-40 to 158 F (-40 to 70 C)
Humidity	5 to 95% RH, non-condensing
Transfer Relay Rating	30Amp
Operating voltage range	LBCO voltage – 18.0 VDC
Maximum Non-Operating Voltage	24.0 VDC
Nominal Voltage (Inverting)	12 VDC
Nominal Current at Full Load	288ADC
Dimensions	15.4(390mm) x 10.8(275mm) x 4.0(102mm)

What’s in the Box:

• Freedom X unit
• Plastic bushings for large DC cables
• Pre-installed ground lug
• Documentation
