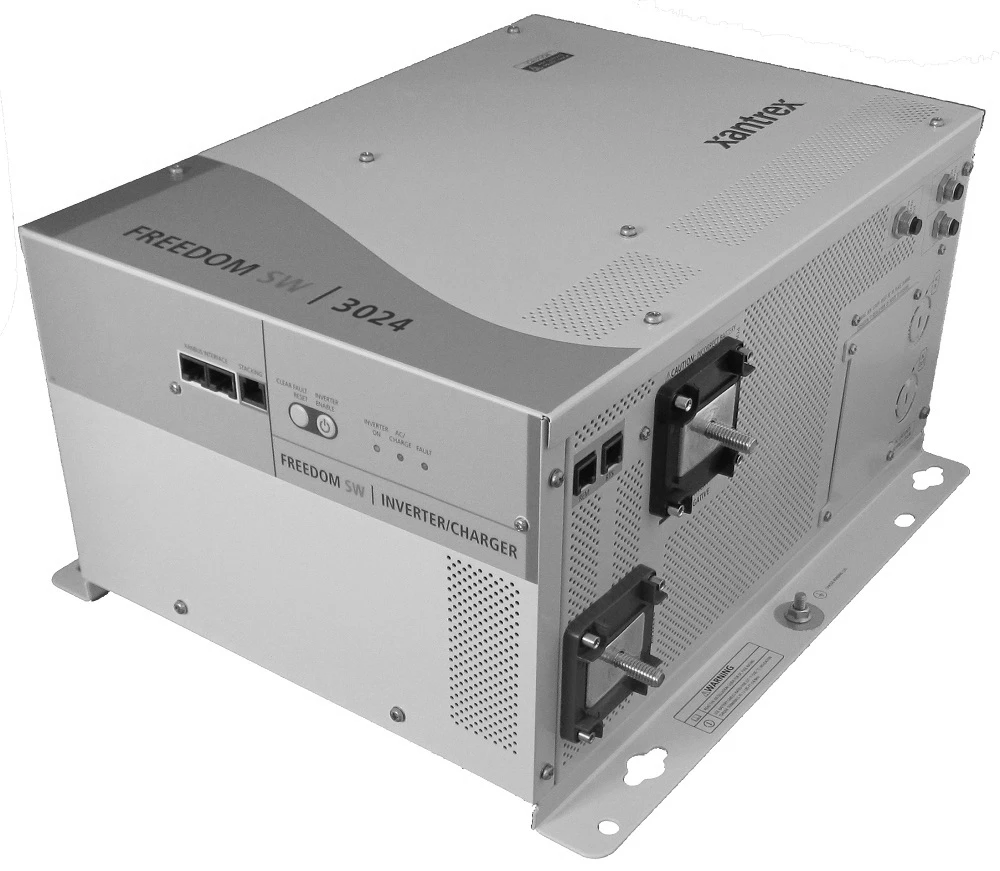

Xantrex Freedom SW3024 24v Inverter Charger

Xantrex SW3024 24v 3000W Inverter Charger

Model: 815-3024

Features:

• Pure sine wave output in two 24-volt
• Parallel stacking capability to double the inverter power output
• Series stacking capability enables operation of 240 Vac applications
• Advanced configuration options for customized applications
• Built-in transfer switch automatically transfers between inverter power and incoming AC power
• Power factor corrected, multi-stage charger for fast, efficient charging
• Temperature compensated charging for a vareity of climate conditions
• Ignition lockout feature helps prevent unnecessary battery drain when the alternator is not providing power
• Wide operating temperature range
• Conformal coated circuit boards for humid environments
• Dual input / Dual output AC interface (3000W model)
• Compatible with the Xantrex Automatic Generator Start (Part# 809-0915)
• Meets CSA, UL458 (with marine supplement), ABYC and FCC Part 15, Class B requirements

The NEW Freedom SW 24 Vdc inverter/charger is packed with features and it is one of the most advanced inverter/chargers in the market today. The Freedom SW features premium sine wave output with high surge capability and temperature compensated, power factor corrected, multi-stage charging to meet power needs of demanding loads including inductive motor loads.

The Freedom SW inverter/charger provides utility grade AC power to operate commonly used AC-powered electronics such as plasma television sets, microwaves, entertainment systems, computers, printers, power tools, refrigerators and much more.

The Freedom SW offers SERIES and PARALLEL stacking capability to enable twice-the-rated output and operation of 240 Vac applications respectively. Both models are compatible with optional accessories such as the System Control Panel and the Automatic Generator Start.

A System Control Panel is required for all system configuration and setup When used with the remote panel Sold separately

Specifications

Electrical Specifications Inverter
Output power (continuous at 40 degrees C)	3000 W
Surge rating (5 seconds)	6000 W
Peak output current	75 A
Output frequency	60 Hz +/- 0.2 Hz
Output voltage	120 Vac
Output wave form	Pure sine wave
Optimal efficiency	94%
No-load power draw (inverting)
Input DC voltage range	20 – 32 Vdc
AC connections	Split phase in / dual out
Electrical specifications charger
Output current (continuous at 25 degrees C)	75 A
Output voltage	24 Vdc
Output voltage range	12 – 32 Vdc
Charge Control	3 stage with manual equalize
Charge temperature compensation	Remote battery sensor (included)
Efficiency	> 85%
AC input power factor (maximum charge)	0.95 typical
Input current (for maximum charging)	22 A rms nominal
Input AC voltage	120 Vac
Input AC voltage range	85 – 140 Vac
Dead battery charge	> 12 Vdc
General Specifications
Compatible battery types	Flooded / Gel / AGM
Transfer relay rating	2 legs at 30 A each
Transfer time (AC to inverter and inverter to AC)
Operating temperature range (full power)	– 4 degrees F to 104 degrees F (- 20 degrees C to 40 degrees C)
Storage ambient temperature range	– 40 degrees F to 185 degrees F (- 40 degrees C to 85 degrees C)
Unit dimensions (H x W x L)	7.75 x 13.5 x 15.25 (197 x 343 x 387 mm)

What’s in the Box:

• SW3024
• Documentation
• battery Temperature sensor
• DC terminal covers (one red, one black) with two sets of #6-32 screw
• Xanbus network terminator x 2
• 5/16-18 nuts and washers for the DC terminals x 2
