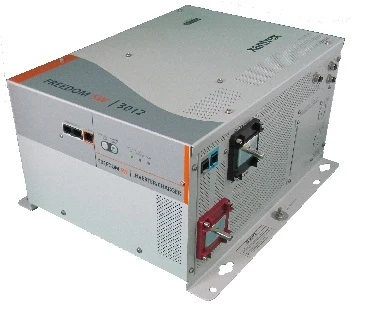

Xantrex Freedom SW2012 12v 2000W Inverter 100A Charger

Powerful. Configurable. Versatile…

The NEW GENERATION Freedom SW series represents highly sophisticated and advanced inverter/ chargers available in 3000 W with 150 A charger and 2000 W with 100 A charger models.

The second generation 2000 watt model has been completely redesigned to include many of the same great features found in its high power counterpart.A key feature enhancement is ?Generator Support Mode? which enables the Freedom SW to supplement a generator when AC loads exceed the generator?s capacity. The new generation models also feature improved AC transfer/AC input detection time, providing the ability to transfer AC loads to batteries in less than 10 milliseconds when the incoming grid or generator power is lost. Connected loads are almost unable to feel the power transition due to this quick transfer time. Both models are approved to UL458 with marine supplement, CSA, ABYC and FCC, Class B requirements.

NEW – PARALLEL AND SERIES STACKING

Parallel stacking enables the Freedom SW inverter/chargers to double the AC output in inverter mode. Series stacking enables the Freedom SW inverter/chargers to generate 120/240 V split phase output

AC source must be split phase, requires Stacking Cable (part# 808-9005)

ApplicationDesigned for a variety of mobile applications such as commercial, emergency and recreational vehicles, marine vessels, construction and military equipment.

• Pure sine wave output to operate sensitive electronics
• Advanced configuration options for customized applications
• Parallel and series stacking capability
• Built-in transfer switch automatically transfers between inverter power and incoming AC power
• Power factor corrected, multi-stage charger for fast, efficient charging
• Temperature compensated charging for a vareity of climate conditions
• Ignition lockout feature helps prevent unnecessary battery drain when the alternator is not providing power
• Wide operating temperature range: -4 F to 140 F (-20 C to 60 C)
• Conformal coated circuit boards for humid environments
• Dual input / Dual output AC interface for 3000 W model
• Ability to charge batteries drained to extremely low voltage
• Compatible with the Xantrex Automatic Generator Start (Part# 809-0915)

When used with the remote panel
Sold separately

Protection Features

• Battery over-voltage and under-voltage protection
• Over-temperature shutdown
• Automatic overload protection
• Short-circuit protection
• Integrated, resettable AC breakers

Specifications

Inverter Specifications	Freedom SW 2012 – 815-2012	Freedom SW 3012 – 815-3012
Output power (continuous @ 40 C)	2000W	3000W
Surge rating (5 seconds)	4000W	6000W
Peak output current	55A	80A
Output frequency	60Hz +/- 0.2hz	60Hz +/- 0.2hz
Output voltage	120 Vac	120 Vac
Output wave form	Pure sine wave	Pure sine wave
Optimal efficiency	90%	90%
No-load power draw (inverting)	3Adc	3Adc
Input DC voltage range	10 – 16Vdc	10 – 16Vdc
AC connections	Single phase in/out	Split phase in/dual out, Dual in / dual out

Charger Specifications
output current (continuous @ 25 C)	100A	150A
output voltage	12Vdc	12Vdc
Output voltage range	3 – 16Vdc	3 – 16Vdc
Charge control	3 stage with manual equalize	3 stage with manual equalize
Charge temperature compensation	Remote battery sensor (included)	Remote battery sensor (included)
Optimal efficiency	>85%	>85%
AC input power factor (maximum charge)	0.98 typical	0.98 typical
Input current (for maximum charging)	16A rms nominal	24A rms nominal
Input AC voltage	120vac	120vac
Input AC voltage range	85-140Vac	85-140 Vac
Dead battery charge	>3Vdc	>3Vdc

General Specifications
Compatible battery types	Flooded/Gel/AGM	Flooded/Gel/AGM
Tranfer relay rating	1 leg 30A	2 legs 30A each
Transfer time ( AC to inverter and Inverter to AC)
Optimal operating temperature range	-4 degrees F to 140 degrees F	-4 degrees F to 140 degrees F
Storage ambient temperature range	-40 degrees F to 185 degrees F	-40 degrees F to 185 degrees F
Unit Dimension	7.75 x 13.5 x 15.25	7.75 x 13.5 x 15.25
Unit Weight	60.5lbs	73.7lbs
Warranty	2 years	2 years
