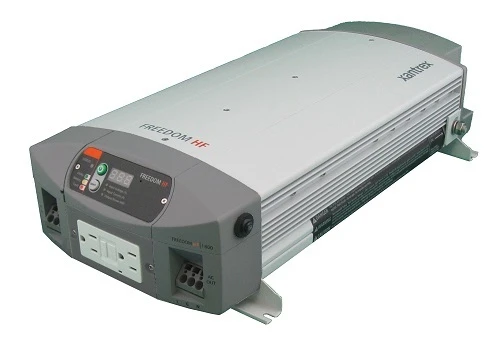

Xantrex Freedom HF 1000 1000W Inverter With 20A Charger

FREEDOM HF REDEFINED.

No Messy Wiring. Quick Installation. Minimal Battery Drain.

The new generation Freedom HF is equipped with quick-connect AC terminals and ignition lockout capability. The quick-connect AC terminals enable quick installation eliminating the need for strain relief clamps. The ignition lockout feature helps to minimize battery drain by disabling the inverter when the ignition is turned off.

The Freedom HF Inverter/Charger is one of the smallest, lightest, and most affordable inverter/chargers in the market today. The Freedom HF Inverter/Charger features modified sine wave output and is designed to operate entertainment systems and small appliances in boats, RV?s and trucks. The Freedom HF is available in three models: 1000 watts with a 20-amp charger, 1000 watts with a 55-amp charger and 1800 watts with a 40-amp charger.

Some of the key feature enhancements include quick-connect AC terminal block on both AC input and output for incredibly easy installation. The ignition lockout feature minimizes battery drain by disabling the inverter when the ignition is turned off.

Product Features

• Designed to power demanding loads such as microwave ovens, TVs, DVD players, small appliances and other electronic equipment
• Removable digital display pre-attached with 25? extension cable for remote system monitoring
• Ignition lockout feature helps to minimize battery drain
• Automatic three-stage battery charger
• Designed to be hardwired using quick-connect AC terminal blocks or by connecting AC through GFCI receptacles (included)
• Built-in 30-amp relay to automatically transfer between inverter power and incoming AC utility power

Protection Features

• Battery over-voltage and under-voltage protection
• Over-temperature shutdown
• Automatic overload protection
• Short-circuit protection
• Ground-fault protection
• ETL certified to UL458 for use in mobile RV and commercial applications

Models	HF 1000	HF 1055	HF 1800
Output Power	1000w	1000w	1800w
Surge Power	2000w	2000w	3600w
Output Frequency regulation	60 hz	60 Hz	60Hz
Inverter Voltage Regulation	115 +/- 10 Vrms	115 +/- 10 Vrms	115 +/- 10 Vrms
Output Wave Form	Modified Sine Wave	Modified Sine Wave	Modified Sine Wave
Efficiency ( Full Load)	> 80%	> 80%	> 80%
Peak Efficiency	> 87%	> 87%	> 87%
No-load input power (producing output voltage)
Off mode current draw (Display Off )
Electrical Specifications
Charge Rate	20A	55A	40A
AC Input Voltage Range	90-130Vac	90-130Vac	90-130Vac
AC Transfer Relay	30A	30A	30A
Battery Voltage ( Nominal)	12vdc	12vdc	12vdc
Operating Voltage Range	10.5-15.5Vdc	10.5-15.5Vdc	10.5-15.5Vdc
Low battery Cut-out (Low Limit / High Limit)	10.5Vdc/11.8Vdc	10.5Vdc/11.8Vdc	10.5Vdc/11.8Vdc
AC Input ( Max Charge)	5Aac	10Aac	7.5Aac
Default Bulk Charge Voltage Setting	14.2Vdc	14.2Vdc	14.2Vdc
Default Float Charge Voltage Setting	13.5Vdc	13.5Vdc	13.5Vdc
Battery Charge Outputs	One	One	One
Charge Control	Three-stage	Three-stage	Three-stage
Battery Type Settings	Flooded/Gel/AGM/Fixed 13.5Vdc	Flooded/Gel/AGM/Fixed 13.5Vdc	Flooded/Gel/AGM/Fixed 13.5Vdc
Equalization	No	No	No
Internal Temperature-sensitive Charging	Yes	Yes	Yes
General Specifications
Optimal Operating Temperature Range	32° – 104° F	32° – 104° F	32° – 104° F
Optional Remotes	Detachable Display	Detachable Display	Detachable Display
Unit Weight	10lb	10lb	12.8lb
Unit Dimensions	4.2 x 9.5 xx 15.5	4.2 x 9.5 xx 15.5	4.2×9.5×18.0
Part Number	806-1020	806-1055	806-1840
