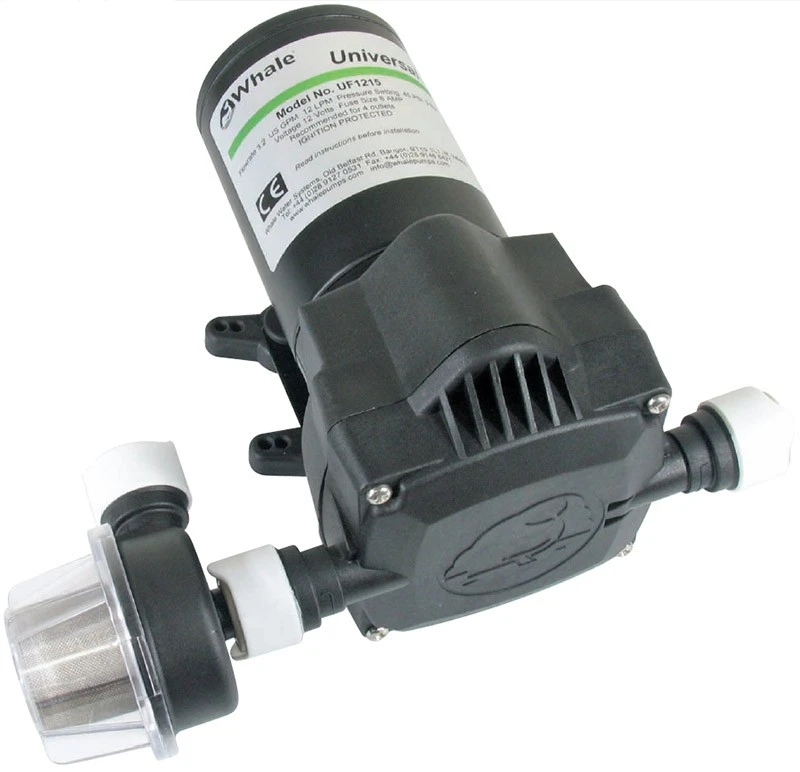

Whale Universal Pressure Pumps 45 Psi

The Whale Universal Pressure Pumps 45 psi are
supplied with Quick Connect inlet and outlet for fast connection
directly to System 15 plumbing. Includes pre strainer/filter that
pivots to suit plumbing direction. 2 x 13mm barbed hose connections
and 2 x 1/2″ BSP threaded tails also included for connection to non
Quick Connect 15 plumbing.

Whale Universal Pressure Pumps 45 psi
Features:

• Probably the marine worlds quietest range of pressure
  pumps
• A range of models for two, four and six outlet or wash down
  application in 12 or 24 volts
• Capacity of 8, 12 and 18 litres per minute
• Universal mounting feet arrangement fits almost any existing
  pressure pump mount hole configuration
• Suitable for use with fresh or saltwater
• Smooth constant flow
• Can be run dry without damage
• Extra protection and safety with wires and pressure switch
  housed internally
• Self priming up to three metres
• Aluminium motor housing
• Run indicator wire allows tell tale light and/or buzzer to
  operate remotely Pump Head Materials:
• Glass filled polypropylene, neoprene, nitrile, stainless steel,
  butyl

Whale Universal Pressure Pumps 45 psi
Specifications:

Code	Volt	Open Flow L/m	No. of Outlets	Max. Head	Lift	Cut Out Pressure
133230	12	8	2-3	30m	3m	3bar (45psi)
133233	24	12	3-4	30m	3m	3bar (45psi)
133234	12	12	3-4	30m	3m	3bar (45psi)
133235	12	18	4-6	30m	3m	3bar (45psi)
133236	24	18	4-6	30m	3m	3bar (45psi)
