Whale Quick Connect Semi-Rigid Tubing System 15mm

Easy to install and reuse

The Whale Quick Connect Plumbing System ensures a high integrity,
reliable, plumbing system solution, specifically designed for use
in mobile applications. It provides easy installation and
reusability of components. A simple two-step installation procedure
doesn’t require special tools to make a watertight connection.

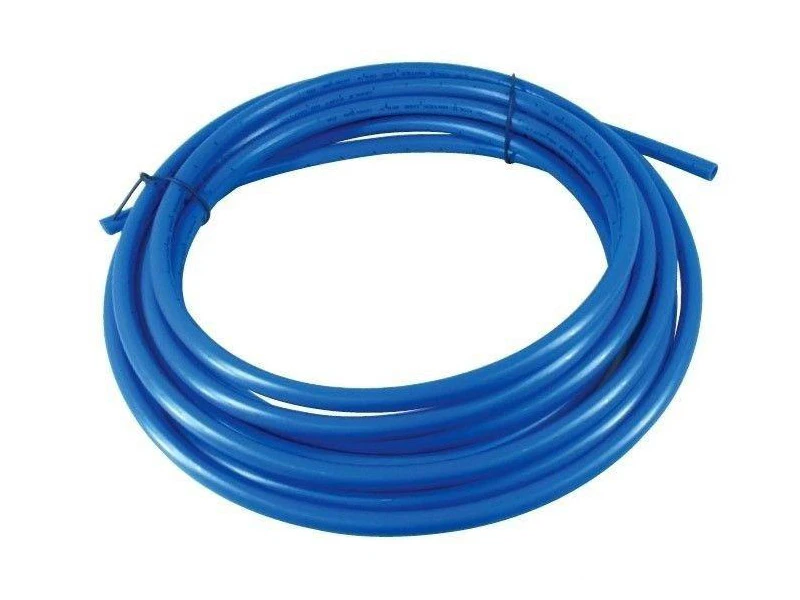

The standard 15mm Whale Quick Connect Semi-Rigid Tubing
System features flexibility that can achieve tight bends,
reducing both the number of fittings and time required to install.
This semi-rigid tubing offers the integrity of metal with the
usability of plastic and is fully tested and recommended for use
with the complete range of Whale fittings. It’s available in red,
green and blue so you can colour code your pipework.

Installation:
1. Cut tube to length
2. Simply push the tube into the fitting to the second internal
stop.
3. To release tube: push back the grey collet into the fitting,
then hold the collect in and pull out the tube.
Note: Do not lubricate the end of the tubing
with silicone.

Whale Quick Connect Semi-Rigid Tubing System
Features

• Semi-rigid
• Material: Medium Density Polyethylene
• Pipework includes measured cut marks, designed to be a visual
  guide to ensure that fittings are pushed fully home
• Diameter: 15mm
• Available lengths: 10 and 50 metres
• Available colours: Blue, red and green
• Recommended Maximum Operating conditions (Hot Water)
  Maximum pressure: 6 bar (90 psi)
  Maximum temperature: 65°C (150°F)
• Recommended Maximum Operating conditions (Cold Water)
  Maximum pressure: 12 bar (180 psi)
  Maximum temperature: 20°C (68°F)
• Minimum bend radius: 75mm

Note: Bulk rates only apply to 50-metre
tubing.
