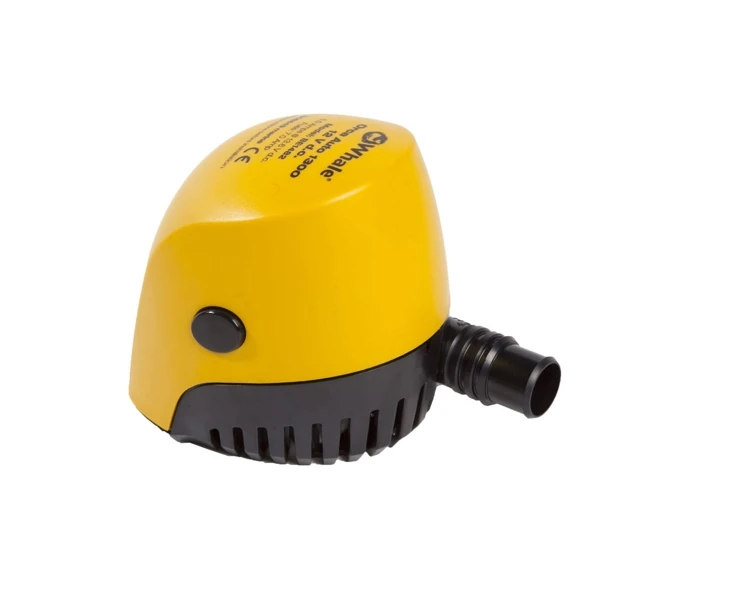

Whale Orca 1300 Automatic Bilge Pump

The Whale Orca Auto 1300 automatic bilge pumps are designed to
complement the intelligently controlled IC pump range. For ease of
installation, wiring simplicity and security and to effect the
removal of bilge water automatically and efficiently, Whale has
integrated a field sensor, innovative electronic control circuitry
and powerful motor into one compact case. The large footprint
ensures maximum surface area exposure to the bilge water and
ensures lowest water level detection. The robust ABS housing
contains the integrated microprocessor electronics which are sealed
for protection against water ingress while the snap off motor
housing enables easy cleaning of the acetal impellor and filter
base.

Features:

• High performance 1300US GPH flow rate in either 12 or 24 volt
  models
• Fully protected integrated microprocessor electronics means no
  moving parts
• Built in automatic water sensor makes installation simple
• No separate bilge float switch required
• Low amp draw extends battery life
• Neat, compact shape with large foot print fits most areas
• ABS fuel resistant housing, nitrile seal, acetal impellor
• Large filter provides maximum surface area exposed to bilge
  water
• Unaffected by wave motion
• CE approved

Specifications:

Volt	Open Flow (l/m)	Open Flow (gph)	Output @ 1m	Hose Size	Max Head	Max Amp	Fuse	Height	Width	Depth
12		82		1300		1100		25 and 28.5		4.5		5		7		129		168		121
24		82		1300		1100		25 and 28.5		4.5		2.5		5		129		168		121
