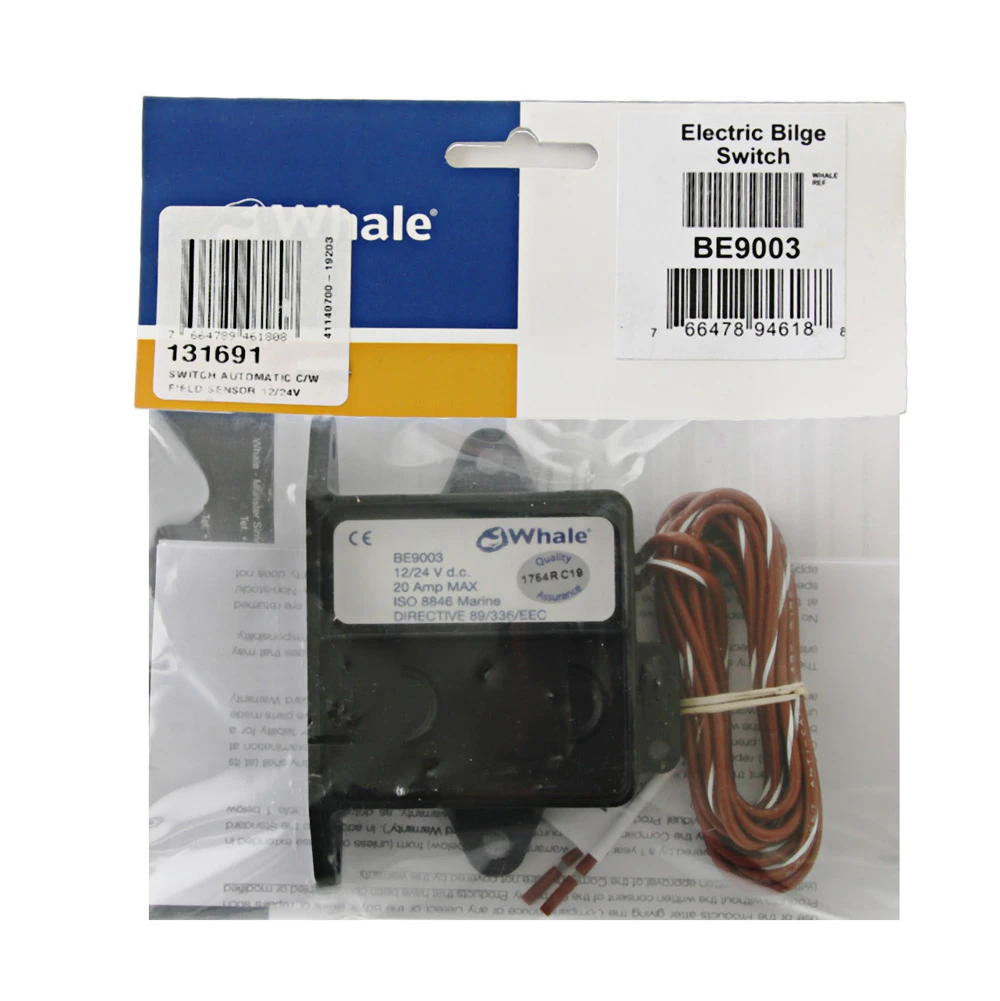

Whale BE9003 Automatic Field Bilge Switch

Designed for pleasure boat applications

The Whale BE9003 Automatic Field Bilge Switch is
an electric field sensor that senses the water level in bilges or
grey waste tanks and automatically controls the operation of a 12
or 24 volt bilge pump. The switch automatically turns the pump on
when it senses a water level of 51mm and turns off when the water
level returns to below 13mm. Designed for pleasure boat
applications and not suitable for flammable liquids, diesel and
chemicals.

Whale BE9003 Automatic Field Bilge Switch
Features:

• Model number: BE9003
• Electric field sensor automatically senses water levels
  and switches on the bilge pumps
• Nylon material – withstands high temperatures
• Automatically switches on when 51mm (2″) of water is sensed and
  turns off
  when water drops below 13mm (½”)
• Voltage: D.C. 12V d.c. or 24V d.c.
• Current: Suitable for up to 20 Amps
• Residual: Current 0.008 Amp

Product Data Sheet
