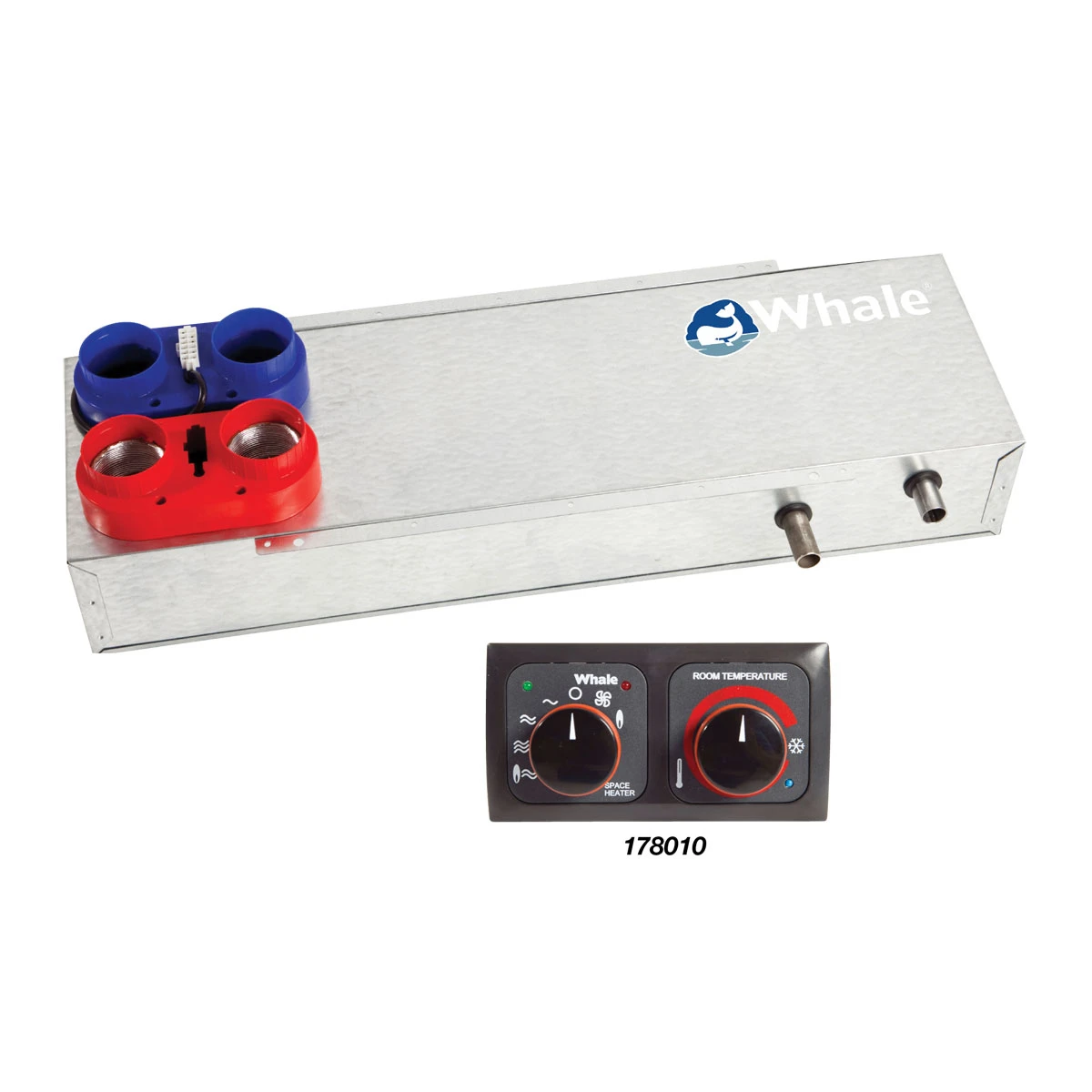

Whale 4KW Underfloor Space Heater

Lightweight yet robust gas and electric space heater
specifically for underfloor mounting on RVs.

Features

• Maintains a comfortable living environment
• Galvanised and sealed housing
• New twin ducting system for more installation options and
  higher heat output
• Mounted underfloor, more space inside
• Lightweight design
• No chimney or flue covers required
• Intuitive and simple controls
• Flues sold separately (2 required)

Accessories:

178010 Space heater control panel

178046 Space heater control panel harness

178094 Flue – 1.25m

178096 Flue – 1.76m

178088 Flue bracket 40mm

Specifications:

Description: 4kW underfloor gas and electric
Gas Type : Butane and Propane
Heat Input (Gross): 2.8kW
Gas Connection: 8mm Compression fitting
Current Consumption (12V): 1.8 Amps (<22W) (0.01 Amps on stand
by)
Electric Supply: 12V d.c. + 230V a.c. 50 Hz
Electric Heat Input (Gross): 2.0kW
Max. Electrical Current Consumption (230V): 9 Amps (2kW
settings)
Max. Electrical Current Consumption (12V): 2.2 Amps (2kW
settings)
Gas and Electrical Combined: 12V d.c. + 230V a.c. 50 Hz
